Valena Life - switches with cover plate - Valena In’Matic mechanisms supplied with cover plates and support frames - To be equipped with plates - Supplied with mounted dust protection transparent shield - After clipping in the rocker, all LED lamps light up blue - Flowpack packaging: robust protection to ensure optimum operation

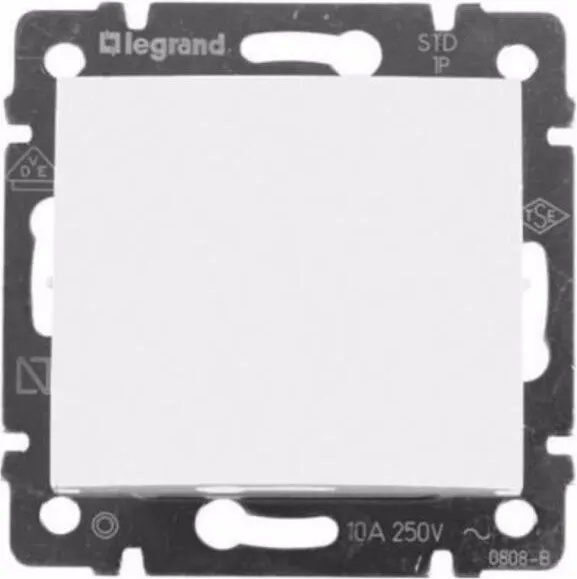

Switches 10 AX - 250 V~Two-way switches - Automatic terminals - White

Technical characteristics

Wiring system
Two-way switch

Method of operation
Rocker/button

Assembly arrangement
Basic element with central cover plate

Push button switch
No

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Mounting with claw and screw

With mounting plate
Yes

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Antimicrobial treatment
No

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

Colour of switch operator

White
Label space/information surface
No

Lighting
No

Function lighting
Other

Type of lighting
Other

Suitable for degree of protection (IP)
IP20

degree of impact strength (IK)
IK04

Nominal voltage
250 V

Rated current
10 A

Switching current for fluorescent lamps
10 AX

Monitoring contact
No

Connection type
Other

Heating switch
No

Washing machine switch
No

Device width
74.7 mm

Device height
74.7 mm

Device depth
41 mm

Built-in depth
27.5 mm

Min. depth of built-in installation box
30 mm

Compatible with Apple HomeKit
No

Compatible with Google Assistant
No

Compatible with Amazon Alexa
No

IFTTT support available
No

Operating / setting temperature
-5-40 °C

Storage temperature
-5-40 °C

Voltage type
AC

Frequency
50-60 Hz

Cable section
2.5-2.5 mm2
